Cylinder tubes

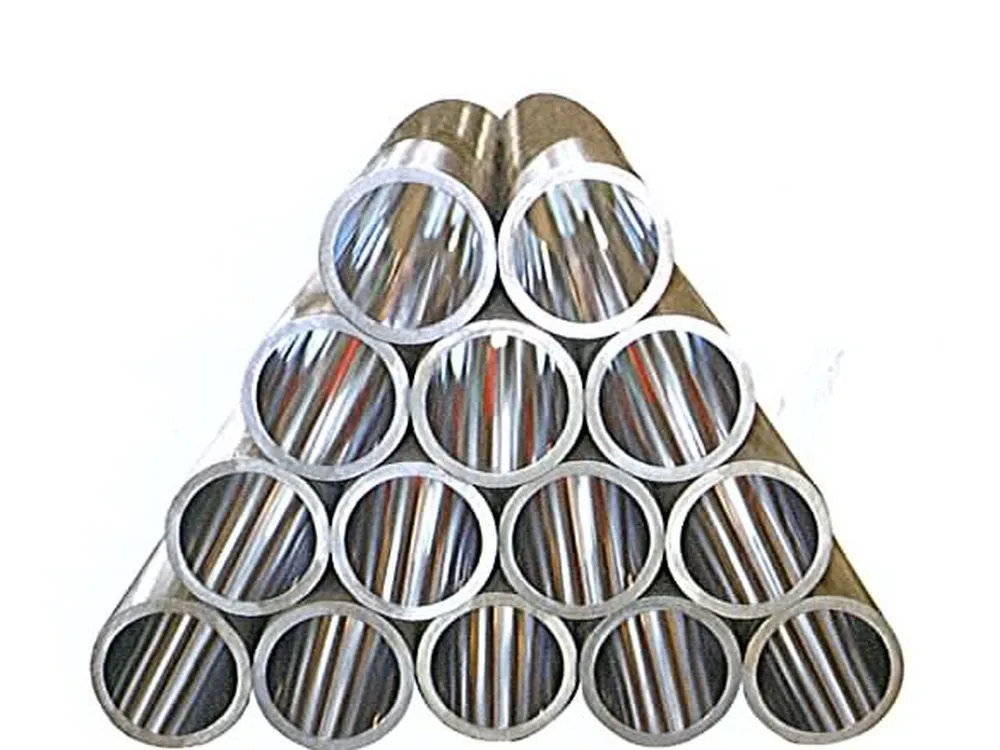

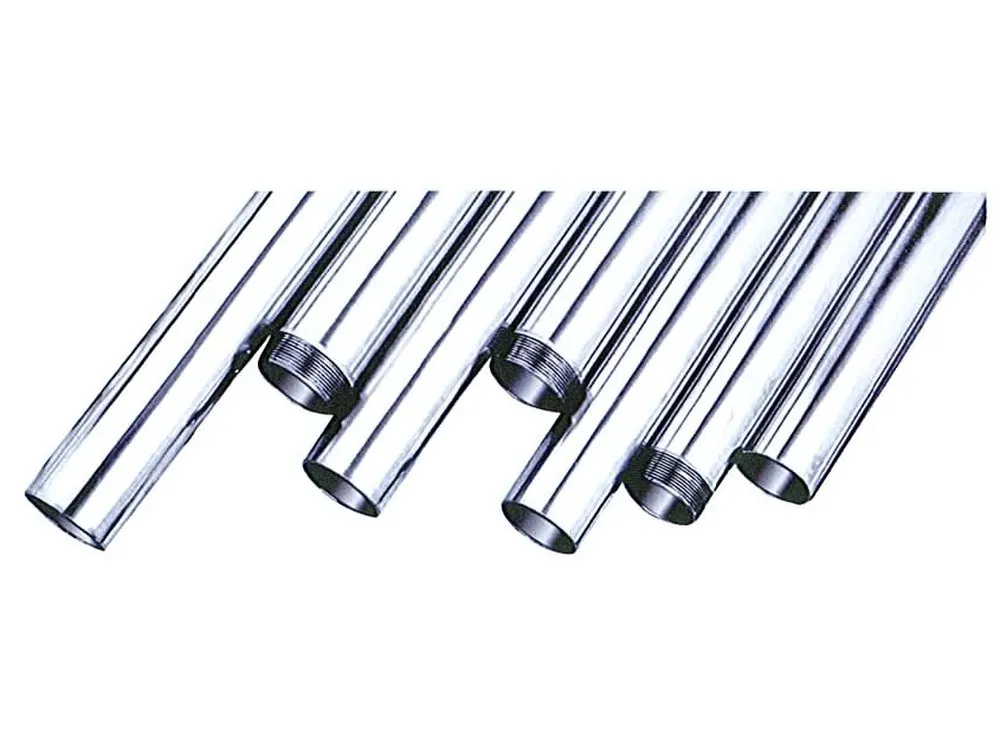

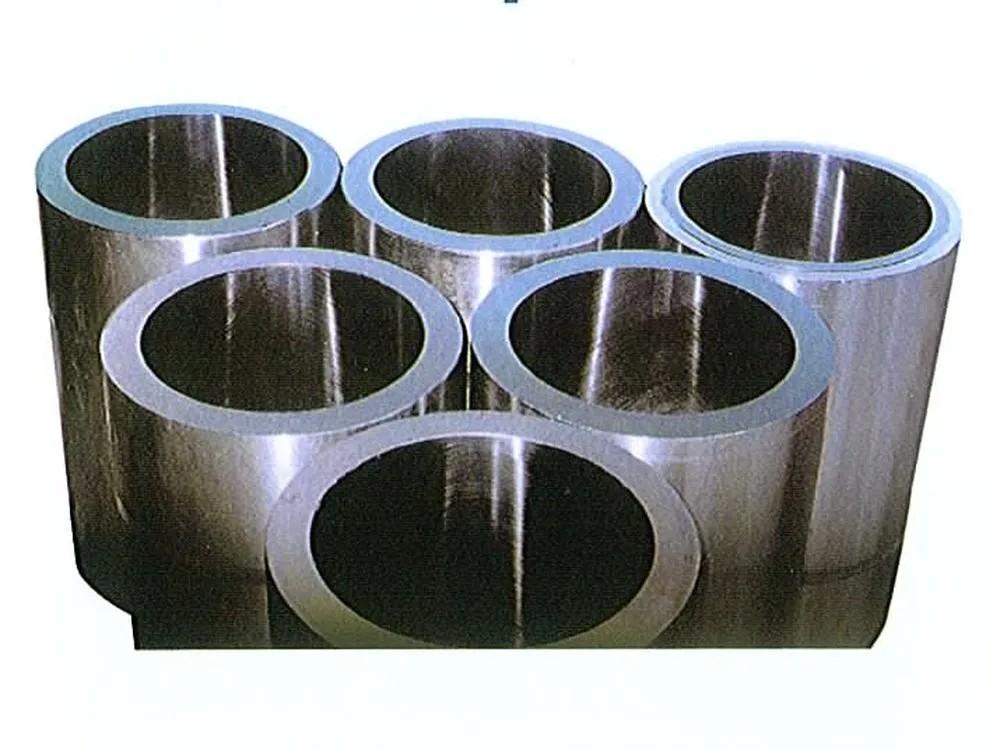

Honed and calibrated tube for cylinder barrels, by inner and outer diameter.
Loading prices…
Prices in Colombian pesos (COP), plus VAT. They may change without notice; we confirm availability and lead time when quoting. For now, purchases are arranged with our team. Images are illustrative.
References and prices
| Ref. | Inner diameter | Outer diameter | Maximum pressure | Piece length | Price (+ VAT) | Availability |
|---|---|---|---|---|---|---|
| HC-C-0006 | 100 mm | 115 mm | 2500 psi | — | COP 375,000 · per meter | In stock |
| HC-C-0005 | 125 mm | 150 mm | 3250 psi | — | COP 731,667 · per meter | In stock |
| HC-C-0004 | 160 mm | 180 mm | 3250 psi | — | COP 858,333 · per meter | In stock |
| HC-C-0003 | 200 mm | 230 mm | 2500 psi | — | COP 1,816,667 · per meter | In stock |
| HC-C-0001 | 300 mm | 380 mm | 3250 psi | 730 mm | COP 38,500,000 · each | In stock |
| HC-C-0002 | 420 mm | 520 mm | 3250 psi | — | COP 53,900,000 · each | In stock |
Technical description
Honed, calibrated tube for hydraulic cylinder barrels, by inner and outer diameter, with the maximum working pressure of each item, in inner diameters from Ø 100 mm to Ø 420 mm.
Applications by industry
- Heavy-duty cylinders: gates, presses and mills
- Repair of scored or out-of-round barrels
- Custom cylinder manufacturing
- Mining, cement and hydroelectric generation
Compatibility and equivalents
To make or repair a cylinder, tell us the inner diameter, the wall thickness or outer diameter and the working pressure and we will confirm the item and length available.
Availability and delivery in Colombia
We deliver nationwide in Colombia within 10 days, subject to stock. Shipping cost depends on the customer’s location and is quoted when the purchase is requested; we confirm availability and lead time when quoting on WhatsApp. Returns: no time limit, as long as the product is shown to be unused and unhandled (warranty returns are the exception); the customer ships the product back and pays the return freight; if the error was ours or a warranty applies, we issue a credit note for the product and the return freight, at no cost to the customer. For plant shutdowns and operational emergencies, write to us with the part number or nameplate data.
Other categories
Can’t find the size you need?
We also manufacture and repair to order. Tell us about your project.
